Published 2023-02-12. Last modified 2023-11-20.
Time to read: 6 minutes.

This page is part of the jekyll_plugins collection, categorized under Jekyll, Ruby.

jekyll_plugin_support

After writing over two dozen Jekyll plugins, I distilled the common code into jekyll_plugin_support. This Ruby gem facilitates writing and testing Jekyll plugins and handles the standard housekeeping that every Jekyll tag and block plugin requires. Logging, parsing arguments, obtaining references to site and page objects, etc. are all handled. The result is faster Jekyll plugin writing with fewer bugs.

Jekyll_plugin_support can be used to create simple Jekyll plugins in the _plugins/ directory of your Jekyll project or gem-based Jekyll plugins.

At present, only Jekyll tags and blocks are supported.

Plugins that use jekyll_plugin_support include:

• jekyll_all_collections
• jekyll_badge
• jekyll_emoji
• jekyll_flexible_include
• jekyll_href
• jekyll_img
• jekyll_plugin_template
• jekyll_outline
• jekyll_pre
• jekyll_quote

... and also the demonstration plugins in jekyll_plugin_support

Installation

Jekyll_plugin_support is packaged as a Ruby gem. If your custom plugin will reside in a Jekyll project’s _plugins directory, add the following line to your Jekyll plugin’s Gemfile.

Shell

group :jekyll_plugins do
  gem 'jekyll_plugin_support', '>= 0.8.0'
end

Otherwise, if your custom plugin will be packaged into a gem, add the following to your plugin’s .gemspec:

Shell

Gem::Specification.new do |spec|
  ...
  spec.add_dependency 'jekyll_plugin_support', '>= 0.8.0'
  ...
end

Install the jekyll_plugin_support gem in the usual manner:

Shell

$ bundle

Copy the CSS classes from demo/assets/css/jekyll_plugin_support.css to your Jekyll project’s CSS file.

About

JekyllSupport::JekyllBlock and JekyllSupport::JekyllTag provide support for Jekyll tag block plugins and Jekyll inline tag plugins, respectively. They are very similar in construction and usage.

Instead of subclassing your custom Jekyll block tag class from Liquid::Block, subclass from JekyllSupport::JekyllBlock. Similarly, instead of subclassing your custom Jekyll tag class from Liquid::Tag, subclass from JekyllSupport::JekyllTag.

Both JekyllSupport classes instantiate new instances of PluginMetaLogger (called @logger) and JekyllPluginHelper (called @helper).

JekyllPluginHelper defines a generic initialize method, and your tag or block tag class should not need to override it. Also, your tag or block tag class should not define a method called render because jekyll_plugin_support defines one.

Instead, define a method called render_impl. For inline tags, render_impl does not accept any parameters. For block tags, a single parameter is required, which contains text passed from your block in the page.

Your implementation of render_impl can parse parameters passed to the tag / block tag, as described in Tag Parameter Parsing.

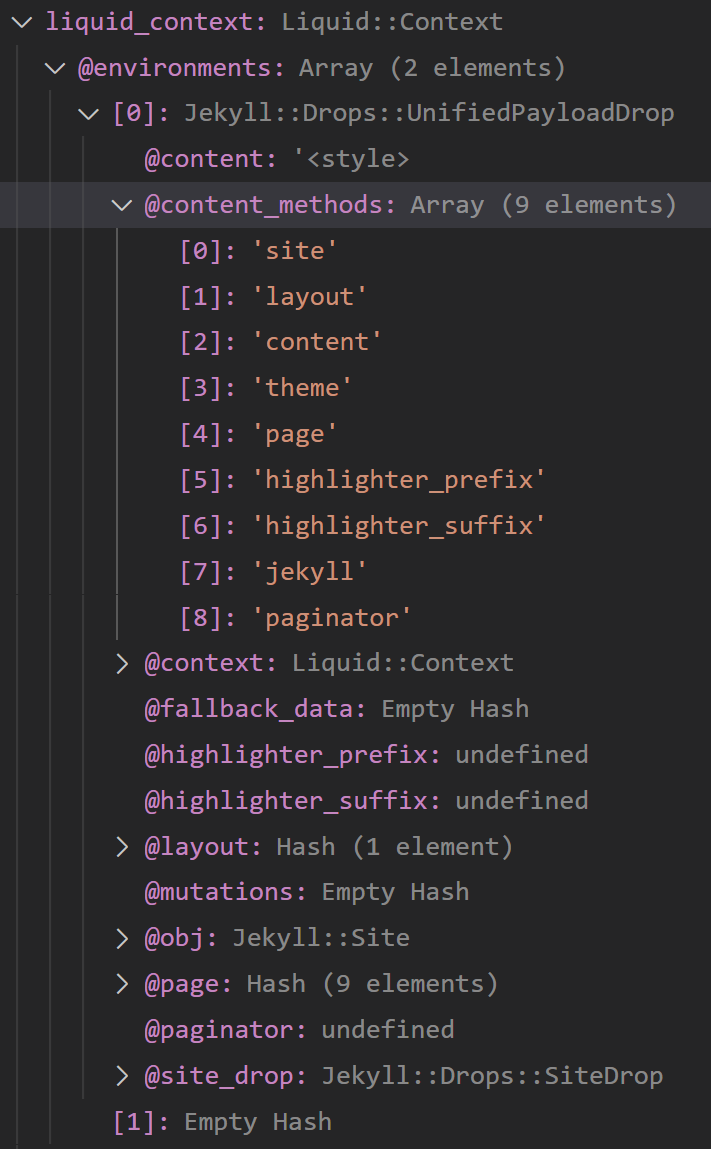

The following variables are predefined within render. See the Jekyll documentation for more information.

• @argument_string – Original unparsed string from the tag in the web page
• @config – Jekyll configuration data
• @layout – Front matter specified in layouts
• @mode – possible values are development, production, or test
• @page – Jekyll page variable
• @paginator – Only has a value when a paginator is active; they are only available in index files.
• @site – Jekyll site variable
• @tag_name – Name of the inline tag or block plugin
• @theme – Theme variables (introduced in Jekyll 4.3.0)

Argument Parsing

Tag arguments can be obtained within render_impl. Both keyword options and name/value parameters are supported.

Both JekyllTag and JekyllBlock use the standard Ruby mechanism for parsing command-line options: shellwords and key_value_parser.

All your code has to do is specify the keywords to search for in the string passed from the HTML page that your tag is embedded in. The included demo website has examples; both demo/_plugins/demo_inline_tag.rb and demo/_plugins/demo_block_tag.rb contain the following:

Shell

@keyword1  = @helper.parameter_specified? 'keyword1'
@keyword2  = @helper.parameter_specified? 'keyword2'
@name1     = @helper.parameter_specified? 'name1'
@name2     = @helper.parameter_specified? 'name2'

Keyword Options

For all keyword options, values specified in the document may be provided. If a value is not provided, the value true is assumed. Otherwise, if a value is provided, it must be wrapped in single or double quotes.

Examples

The following examples use the die_if_error keyword option for the pre and exec tags from the jekyll_pre plugin.

Specifying Tag Option Values

The following sets die_if_error true:

Implicitly enabling die_if_error

{% pre die_if_error %} ... {% endpre %}

The above is the same as writing:

Explicitly enabling die_if_error

{% pre die_if_error='true' %} ... {% endpre %}

Or writing:

Explicitly enabling die_if_error

{% pre die_if_error="true" %} ... {% endpre %}

Neglecting to provide surrounding quotes around the provided value causes the parser to not recognize the option. Instead, what you had intended to be the keyword/value pair will be parsed as part of the command. For the pre tag, this means the erroneous string becomes part of the label value, unless label is explicitly specified. For the exec tag, this means the erroneous string becomes part of the command to execute. The following demonstrates the error.

Pre: missing quotes around the value of die_if_error

{% pre die_if_error=false %} ... {% endpre %}

The above causes the label to be die_if_error=false.

Exec: missing quotes around the value of die_if_error

{% exec die_if_error=false ls %} ... {% endpre %}

The above causes the command to be executed to be die_if_error=false ls instead of ls.

Quoting

Parameter values can be quoted.

If the value consists of only one token, then quoting is optional. The following name/value parameters all have the same result:

• pay_tuesday="true"
• pay_tuesday='true'
• pay_tuesday=true
• pay_tuesday

If the values consist of more than one token, quotes must be used. The following examples both yield the same result:

• pay_tuesday="maybe not"
• pay_tuesday='maybe not'

Remaining Markup

After your plugin has parsed all the keyword options and name/value parameters, call @helper.remaining_markup to obtain the remaining markup that was passed to your plugin.

Liquid Variable Definitions

jekyll_plugin_support provides support for Liquid variables to be defined in _config.yml, in a section called liquid_vars. The following _config.yml fragment defines 3 variables called var1, var2 and var3:

liquid_vars:
  var1: value1
  var2: 'value 2'
  var3: value3

Liquid variables defined in this manner are intended to be embedded in a webpage. They are expanded transparently and can be referenced like any other Liquid variable. These Liquid variables can be passed as parameters to other plugins and includes.

In the following example web page, the Liquid variable called var1 is expanded as part of the displayed page. The Liquid variables var1 and var2 are expanded and passed to the my_plugin plugin.

This is the value of var1: {{var1}}.

{% my_plugin param1="{{var1}}" param2="{{var2}}" %}

Jekyll_plugin_support expands all but one of the plugin variables described above, replacing Liquid variable references with their values. The exception is @argument_string, which is not expanded.

Liquid Variable Values Specific To Production, Development and Test Modes

jekyll_plugin_support allows Liquid variables defined in _config.yml to have different values when Jekyll is running in development, production and test modes. When injecting variables into your Jekyll website, Jekyll_plugin_support refers to definitions specific to the current environment and then refers to other definitions that are not overridden.

Here is an example:

Shell

liquid_vars:
  development:
    var1: 'http://localhost:4444/demo_block_tag.html'
    var2: 'http://localhost:4444/demo_inline_tag.html'
  production:
    var1: 'https://github.com/django/django/blob/3.1.7'
    var2: 'https://github.com/django-oscar/django-oscar/blob/3.0.2'
  var3: 'https://github.com/mslinn'

For the above, the following variable values are set in development mode:

• var1 http://localhost:4444/demo_block_tag.html
• var2 http://localhost:4444/demo_inline_tag.html
• var3 https://github.com/mslinn

... and the following variable values are set in production and test modes:

• var1 https://github.com/django/django/blob/3.1.7
• var2 https://github.com/django-oscar/django-oscar/blob/3.0.2
• var3 https://github.com/mslinn

Liquid Variables in jekyll_plugin_support Subclasses

You can define additional Liquid variables in plugins built using jekyll_plugin_support. To achieve this, make entries in _config.yml under a key named after the value of @tag_name.

For example, let’s imagine you create a plugin using jekyll_plugin_support, and you register it with the name phonetic_alphabet. You could define Liquid variables that would be made available to content pages in web applications that incorporate the phonetic_alphabet plugin. The following section in _config.yml defines variables called x, y and z, with values xray, yankee and zulu, respectively:

phonetic_alphabet:
  x: xray
  y: yankee
  z: zulu

The above definitions allow you to write content pages that use those variables, like the following:

---
layout: default
title: Variable demo
---
The letter x is pronounced {{x}}.
Similarly, the letters y and z are pronounced {{y}} and {{z}}.

... which expands to:

Variable demo

The letter x is pronounced xray.
Similarly, the letters y and z are pronounced yankee and zulu.

Writing Plugins

The following minimal examples define VERSION, which is important because JekyllPluginHelper.register logs that value when registering the plugin.

This is how you would define plugins in the _plugins directory:

Boilerplate for an inline tag plugin

require 'jekyll_plugin_support'

module Jekyll
  class DemoTag < JekyllSupport::JekyllTag
    VERSION = '0.1.0'.freeze

    def render_impl
      @helper.gem_file __FILE__ # Enables attribution; only works when plugin is a gem
      # Your Jekyll plugin logic goes here
    end

    JekyllPluginHelper.register(self, 'demo_tag')
  end
end

Boilerplate for a tag block plugin

require 'jekyll_plugin_support'

module Jekyll
  class DemoBlock < JekyllSupport::JekyllBlock
    VERSION = '0.1.0'.freeze

    def render_impl(text)
      @helper.gem_file __FILE__ # Enables attribution; only works when plugin is a gem
      # Your Jekyll plugin logic goes here
    end

    JekyllPluginHelper.register(self, 'demo_block')
  end
end

If your plugin is packaged as a gem, then you might need to include version.rb into the plugin class. For example, if your version module looks like this:

module MyPluginVersion
  VERSION = '0.5.0'.freeze
end

Then your plugin can incorporate the VERSION constant into your plugin like this:

Shell

require 'jekyll_plugin_support'
require_relative 'my_plugin/version'

module Jekyll
  class MyBlock < JekyllSupport::JekyllBlock
    include MyPluginVersion

    def render_impl(text)
      @helper.gem_file __FILE__ # Enables attribution; only works when plugin is a gem
      # Your code here
    end

    JekyllPluginHelper.register(self, 'demo_block')
  end
end

No_arg_parsing Optimization

If your tag or block plugin only needs access to the raw arguments passed from the web page without tokenization, and you expect that the plugin might be invoked with large amounts of text, derive your plugin from JekyllBlockNoArgParsing or JekyllTagNoArgParsing. See the demo plugins for an example.

This feature is used by the select tag in the jekyll_pre plugin.

Subclass Attribution

JekyllTag and JekyllBlock subclasses of jekyll_plugin_support can utilize the attribution option if they are published as gems. Jekyll­Tag­No­Arg­Parsing and Jekyll­Block­No­Arg­Parsing subclasses cannot.

When used as a keyword option, a default value is used for the attribution string. When used as a name/value option, the attribution string can be specified. Using the attribution option causes subclasses to replace their usual output with HTML that looks like:

Shell

<div id="jps_attribute_12345" class="jps_attribute">
  <a href="https://github.com/mslinn/jekyll_outline">
    <b>Generated by <code>jekyll_outline</code>.
  </a>
</div>

The id attribute in the sample HTML above is randomized, so more than one attribution can appear on a page.

Attribution Generation

You can decide where you want the attribution string for your Jekyll tag to appear by invoking @helper.attribute. For example, this is how the jekyll_outline tag generates output:

portion of render_impl in jekyll_outline

<<~HEREDOC
<div class="outer_posts">
#{make_entries(collection)&.join("\n")}
</div>
#{@helper.attribute if @helper.attribution}
HEREDOC

Usage

Typical usage for the attribution tag is:

Shell

{% my_tag attribution %}

The normal processing of my_tag is augmented by interpolating the attribution format string, which is a Ruby-compatible interpolated string.

The default attribution format string is:

Shell

"Generated by the #{name} #{version} Jekyll plugin, written by #{author} #{date}."

Because jekyll_plugin_suppprt subclasses are gems, their gemfiles define values for name, version, homepage, and authors, as well as many other properties. The date property is obtained from the plugin/gem publishing date.

An alternative attribution string can be specified using any of the above properties:

Shell

{% my_tag attribution="Generated by the #{name} #{version} Jekyll plugin, written by #{author} #{date}" %}

Development

After checking out the jekyll_plugin_suppprt repository, run bin/setup to install dependencies.

bin/console provides an interactive prompt that allows you to experiment.

To build and install this gem on your local machine, run:

Shell

$ bundle exec rake install
jekyll_plugin_support 0.1.0 built to pkg/jekyll_plugin_support-0.1.0.gem.
jekyll_plugin_support (0.1.0) installed.

Examine the newly built gem:

Shell

$ gem info jekyll_plugin_support

*** LOCAL GEMS ***

jekyll_plugin_support (0.1.0)
    Author: Mike Slinn
    Homepage:
    https://github.com/mslinn/jekyll_plugin_support
    License: MIT
    Installed at: /home/mslinn/.gems

    Provides a framework for writing and testing Jekyll plugins.

Pry Breakpoint On StandardError

A pry breakpoint will be set in the StandardError handler if pry_on_standard_error: true is set in the Liquid variable definition section for your plugin within _config.yml.

For example, if your plugin is called blah, enable the breakpoint with the following section:

Shell

blah:
  pry_on_standard_error: true

Demonstration Plugins and Website

The jekyll_plugin_support GitHub project includes a demo website. It can be used to debug the plugin or to run it freely.

Examining the Demo Plugins

The following example plugins use Ruby’s squiggly heredoc operator (<<~). The squiggly heredoc operator removes the outermost indentation. This provides easy-to-read multiline text literals.

demo/_plugins/demo_tag.rb

require 'jekyll_plugin_support'

module Jekyll
  class DemoTag < JekyllSupport::JekyllTag
    VERSION = '0.1.2'.freeze

    def render_impl
      @custom_error   = @helper.parameter_specified? 'raise_custom_error'
      @keyword1       = @helper.parameter_specified? 'keyword1'
      @keyword2       = @helper.parameter_specified? 'keyword2'
      @name1          = @helper.parameter_specified? 'name1'
      @name2          = @helper.parameter_specified? 'name2'
      @standard_error = @helper.parameter_specified? 'raise_standard_error'

      if @tag_config
        @die_on_custom_error   = @tag_config['die_on_custom_error']   == true
        @die_on_standard_error = @tag_config['die_on_standard_error'] == true
      end

      raise CustomError, 'Fall down, go boom.' if @custom_error

      _infinity = 1 / 0 if @standard_error

      output
    rescue CustomError => e # jekyll_plugin_support handles StandardError
      e.shorten_backtrace
      msg = format_error_message e.message
      @logger.error "#{e.class} raised #{msg}"
      raise e if @die_on_custom_error

      "<div class='custom_error'>#{e.class} raised in #{self.class};\n#{msg}</div>"
    end

    private

    def output
      <<~END_OUTPUT
        <pre>@helper.tag_name=#{@helper.tag_name}

        @mode=#{@mode}

        # jekyll_plugin_support becomes able to perform variable substitution after this variable is defined.
        # The value could be updated at a later stage, but no need to add that complexity unless there is a use case.
        @argument_string="#{@argument_string}"

        @helper.argv=
          #{@helper.argv&.join("\n  ")}

        # Liquid variable name/value pairs
        @helper.params=
          #{@helper.params&.map { |k, v| "#{k}=#{v}" }&.join("\n  ")}

        # The keys_values property serves no purpose any more, consider it deprecated
        @helper.keys_values=
          #{(@helper.keys_values&.map { |k, v| "#{k}=#{v}" })&.join("\n  ")}

        remaining_markup='#{@helper.remaining_markup}'

        @envs=#{@envs.keys.sort.join(', ')}

        @config['url']='#{@config['url']}'

        @site.collection_names=#{@site.collection_names&.sort&.join(', ')}

        @page['description']=#{@page['description']}

        @page['path']=#{@page['path']}

        @keyword1=#{@keyword1}

        @keyword2=#{@keyword2}

        @name1=#{@name1}

        @name2=#{@name2}</pre>
      END_OUTPUT
    end

    JekyllPluginHelper.register(self, 'demo_inline_tag')
  end
end

demo/_plugins/demo_block.rb

require 'cgi'
require 'jekyll_plugin_support'

module Jekyll
  CustomError = JekyllSupport.define_error

  class DemoBlock < JekyllSupport::JekyllBlock
    VERSION = '0.1.2'.freeze

    def render_impl(text)
      @custom_error   = @helper.parameter_specified? 'raise_custom_error'
      @keyword1       = @helper.parameter_specified? 'keyword1'
      @keyword2       = @helper.parameter_specified? 'keyword2'
      @name1          = @helper.parameter_specified? 'name1'
      @name2          = @helper.parameter_specified? 'name2'
      @standard_error = @helper.parameter_specified? 'raise_standard_error'

      if @tag_config
        @die_on_custom_error   = @tag_config['die_on_custom_error']   == true
        @die_on_standard_error = @tag_config['die_on_standard_error'] == true
      end

      raise CustomError, 'Fall down, go boom.' if @custom_error

      _infinity = 1 / 0 if @standard_error

      output text
    rescue CustomError => e # jekyll_plugin_support handles StandardError
      e.shorten_backtrace
      msg = format_error_message e.message
      @logger.error "#{e.class} raised #{msg}"
      raise e if @die_on_custom_error

      "<div class='custom_error'>#{e.class} raised in #{self.class};\n#{msg}</div>"
    end

    private

    def output(text)
      <<~END_OUTPUT
        <pre>@helper.tag_name=#{@helper.tag_name}

        @mode=#{@mode}

        # jekyll_plugin_support becomes able to perform variable substitution after this variable is defined.
        # The value could be updated at a later stage, but no need to add that complexity unless there is a use case.
        @argument_string="#{@argument_string}"

        @helper.argv=
          #{@helper.argv&.join("\n  ")}

        # Liquid variable name/value pairs
        @helper.params=
          #{@helper.params&.map { |k, v| "#{k}=#{v}" }&.join("\n  ")}

        # The keys_values property serves no purpose any more, consider it deprecated
        @helper.keys_values=
          #{(@helper.keys_values&.map { |k, v| "#{k}=#{v}" })&.join("\n  ")}

        @helper.remaining_markup='#{@helper.remaining_markup}'

        @envs=#{@envs.keys.sort.join(', ')}

        @config['url']='#{@config['url']}'

        @site.collection_names=#{@site.collection_names&.sort&.join(', ')}

        @page['description']=#{@page['description']}

        @page['path']=#{@page['path']}

        @keyword1=#{@keyword1}

        @keyword2=#{@keyword2}

        @name1=#{@name1}

        @name2=#{@name2}

        text=#{text}</pre>
      END_OUTPUT
    end

    JekyllPluginHelper.register(self, 'demo_block_tag')
  end
end

The following is an example of no_arg_parsing optimization.

demo/_plugins/demo_no_args.rb

require 'jekyll_plugin_support'

module Jekyll
  class DemoTagNoArgs < JekyllSupport::JekyllTagNoArgParsing
    VERSION = '0.1.0'.freeze

    def render_impl
      <<~END_OUTPUT
        The raw arguments passed to this <code>DemoTagNoArgs</code> instance are:<br>
        <code>#{@argument_string}</code>
      END_OUTPUT
    end

    JekyllPluginHelper.register(self, 'demo_inline_tag_no_arg')
  end
end

Run Freely

1. Run from the command line:

   Shell

   $ demo/_bin/debug -r

2. View the generated website, which might be at http://localhost:4444, depending on how you configured it.

Plugin Debugging

1. Set breakpoints in Visual Studio Code.
2. Initiate a debug session from the command line by running the demo/_bin/debug script:

   Shell

   $ demo/_bin/debug
   Fetching gem metadata from https://rubygems.org/..........
   Resolving dependencies...
   Fetching public_suffix 5.0.4
   Fetching nokogiri 1.15.5 (x86_64-linux)
   Installing public_suffix 5.0.4
   Installing nokogiri 1.15.5 (x86_64-linux)
   Bundle complete! 17 Gemfile dependencies, 96 gems now installed.
   Use `bundle info [gemname]` to see where a bundled gem is installed.
    INFO PluginMetaLogger: Loaded DraftFilter plugin.
   INFO PluginMetaLogger: Loaded outline_js v1.2.1 plugin.
   INFO PluginMetaLogger: Loaded outline v1.2.1 plugin.
   Configuration file: /mnt/f/jekyll_plugin_support/demo/_config.yml
             Cleaner: Removing /mnt/f/jekyll_plugin_support/demo/_site...
             Cleaner: Removing /mnt/f/jekyll_plugin_support/demo/.jekyll-metadata...
             Cleaner: Removing /mnt/f/jekyll_plugin_support/demo/.jekyll-cache...
             Cleaner: Nothing to do for .sass-cache.
   DEBUGGER: Debugger can attach via TCP/IP (127.0.0.1:37177)
   DEBUGGER: wait for debugger connection...

3. Once the DEBUGGER: wait for debugger connection... message appears, run the Visual Studio Code launch configuration called Attach with rdbg.
4. View the generated website, which might be at http://localhost:4444, depending on how you configured it.

Share to Twitter, Hacker News, LinkedIn.
